Wolseley Stationary Engines – Models
The table below represents all production model Wolseley Stationary Engines from the first model released in 1909 up until engine production ceased in 1975. We are seeking copies and scans of original literature including operating, repair, sales brochures and parts listings. Please contact us if you can assist.


Production Date : 1909-1911
Power Sizes : 3 HP
Serial Number Range : Unknown
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley Pre-Style Picture courtesy of the Fisher family


Production Date : 1910-1916
Power Sizes : 3.5 and 5 HP (3.2 and 4.6 on Paraffin)
Serial Number Range : 1000 > 2XXX ?
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley Style 1 Picture courtesy of Kenny William's Wolseley Pages


Production Date : 1916-1920
Power Sizes : 3.5 and 5 HP (3.2 and 4.6 on Paraffin)
Serial Number Range : 2XXX > 3XXX ?
Technical Data HERE
Literature HERE
Picture and Video HERE


Production Date : 1920-1925
Power Sizes : 3.5, 4 and 5.5 HP
Serial Number Range : 3XXX > 4XXX ?
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley Style 3 (S Type) Picture courtesy of Shane McCrae


Production Date : 1923-193X ?
Power Sizes : 2.5, 3, 4, and 6 HP
Serial Number Range : 5000 > 8999 and 22000 > 23999
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley Style 4 (R Type) Picture is of the author's R Type


Production Date : 1920-19XX ?
Power Sizes : 3 HP
Serial Number Range : 400 > 599 ?
Technical Data HERE
Literature HERE
Picture and Video HERE

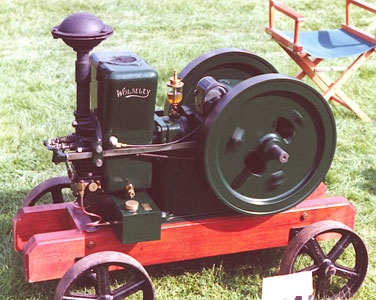

Wolseley Horizontal Picture courtesy of Kenny William's Wolseley Pages


Production Date : 1929-1935 ?
Power Sizes : 1, 1.5 and 2 HP
Serial Number Range : 1000 > 1999 ?
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley Pre-WD Picture courtesy of Kenny William's Wolseley Pages


Production Date : 1943-1945
Power Sizes : 1.5 and 2 1/4 HP
Serial Number Range : 3003 > 6550
Technical Data HERE
Literature HERE
Picture and Video HERE

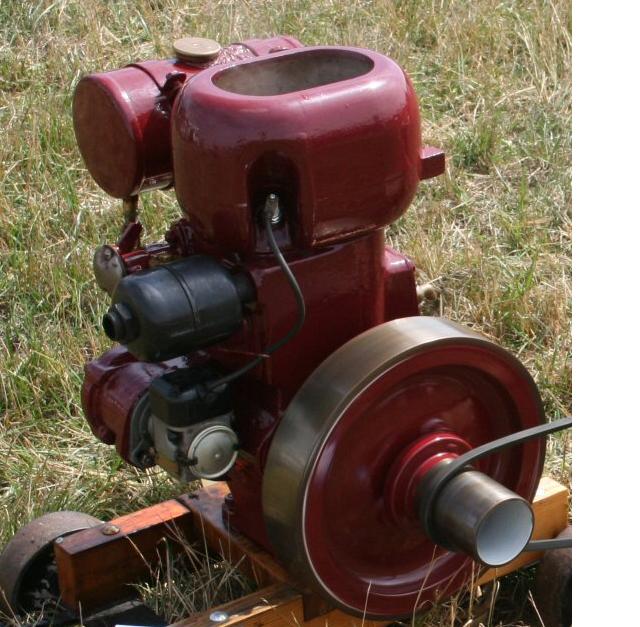

Wolseley WD1 Picture courtesy of Peter Aldous at Stationary Engine


Production Date : 1945-1948
Power Sizes : 1.5>2 HP, 2>2.5 HP and 2.5>3 HP
Serial Number Range : 7000 > 24004
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley WD2 Picture courtesy of Mark Howard


Production Date : 1948-1961
Power Sizes : 1.5>2 1/4 HP, 2 1/4>2 3/4 HP and 2 3/4>3 1/4 HP
Serial Number Range : 24005 > 60650
Technical Data HERE
Literature HERE
Picture and Video HERE

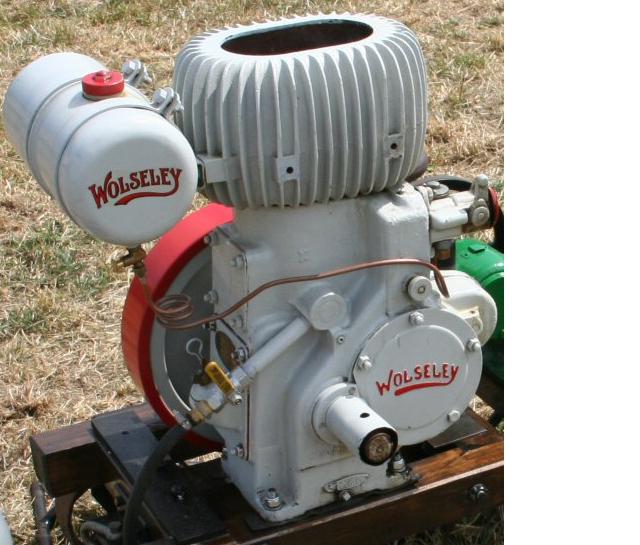

Wolseley WD8 Picture courtesy of Peter Aldous at Stationary Engine


Production Date : 1961-1975
Power Sizes : 1.5>2 1/4 HP, 2 1/4>2 3/4 HP and 2 3/4>3 1/4 HP
Serial Number Range : 60651 > 90258
Technical Data HERE
Literature HERE
Picture and Video HERE

Wolseley WD9 Picture courtesy of Jerry Evans at Old Engines in South Africa


Production Date : 1946-1949
Power Sizes : 2 1/4>3 1/2 HP, 3 1/4>4 1/2 HP and 4>5 1/4 HP
Serial Number Range : 100 > 793
Technical Data HERE
Literature HERE
Picture and Video HERE

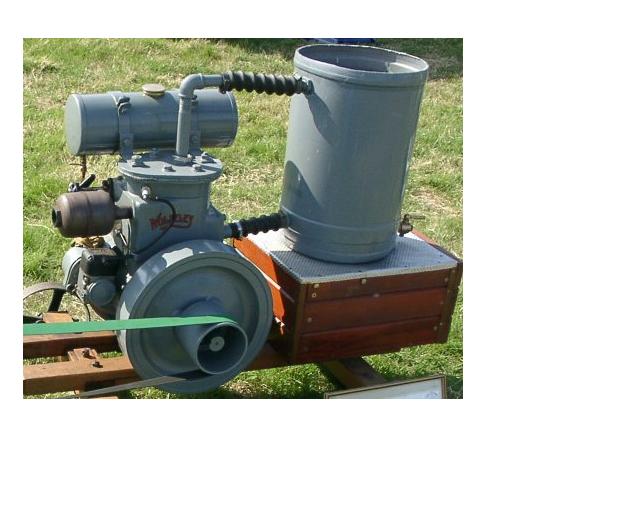

Wolseley WLB1 Picture courtesy of Kenny William's Wolseley Pages


Production Date : 1949-1957
Power Sizes : 2 1/4>3 1/2 HP, 3 1/4>4 1/2 HP and 4>5 1/4 HP
Serial Number Range : 794 > 17219
Technical Data HERE
Literature HERE
Picture and Video HERE

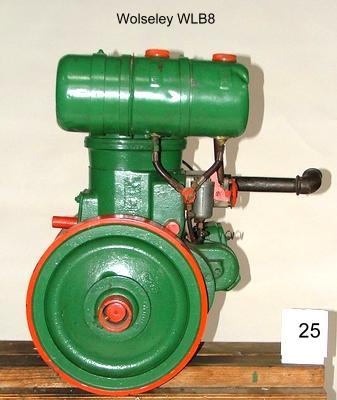

Wolseley WLB8 Picture courtesy of Mike Meyers at the Sandstone Heritage Trust


Production Date : 1955-1976
Power Sizes : 2 1/4>3 1/2 HP, 3 1/4>4 1/2 HP and 4>5 1/4 HP
Serial Number Range : 17220 > 47020
Technical Data HERE
Literature HERE
Picture and Video HERE

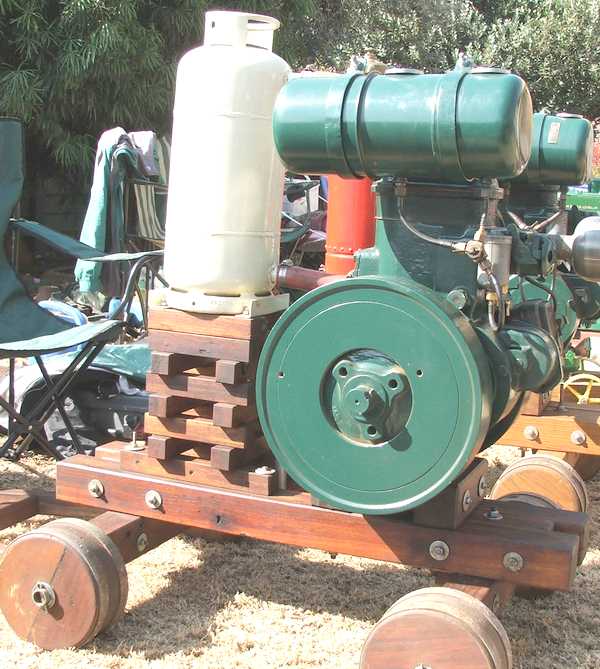

Wolseley WLB9 Picture courtesy of Jerry Evans at Old Engines in South Africa


Production Date : 1954-1975
Power Sizes : 1 1/2 > 5 HP
Serial Number Range : 1000 > 10322
Technical Data HERE
Literature HERE
Picture and Video HERE

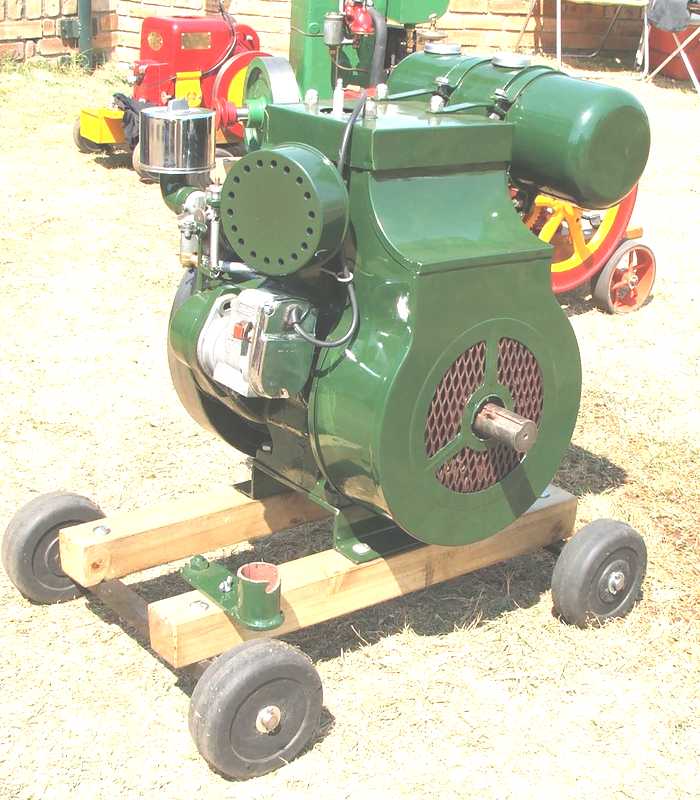

Wolseley Air Cooled Picture courtesy of Jerry Evans at Old Engines in South Africa
